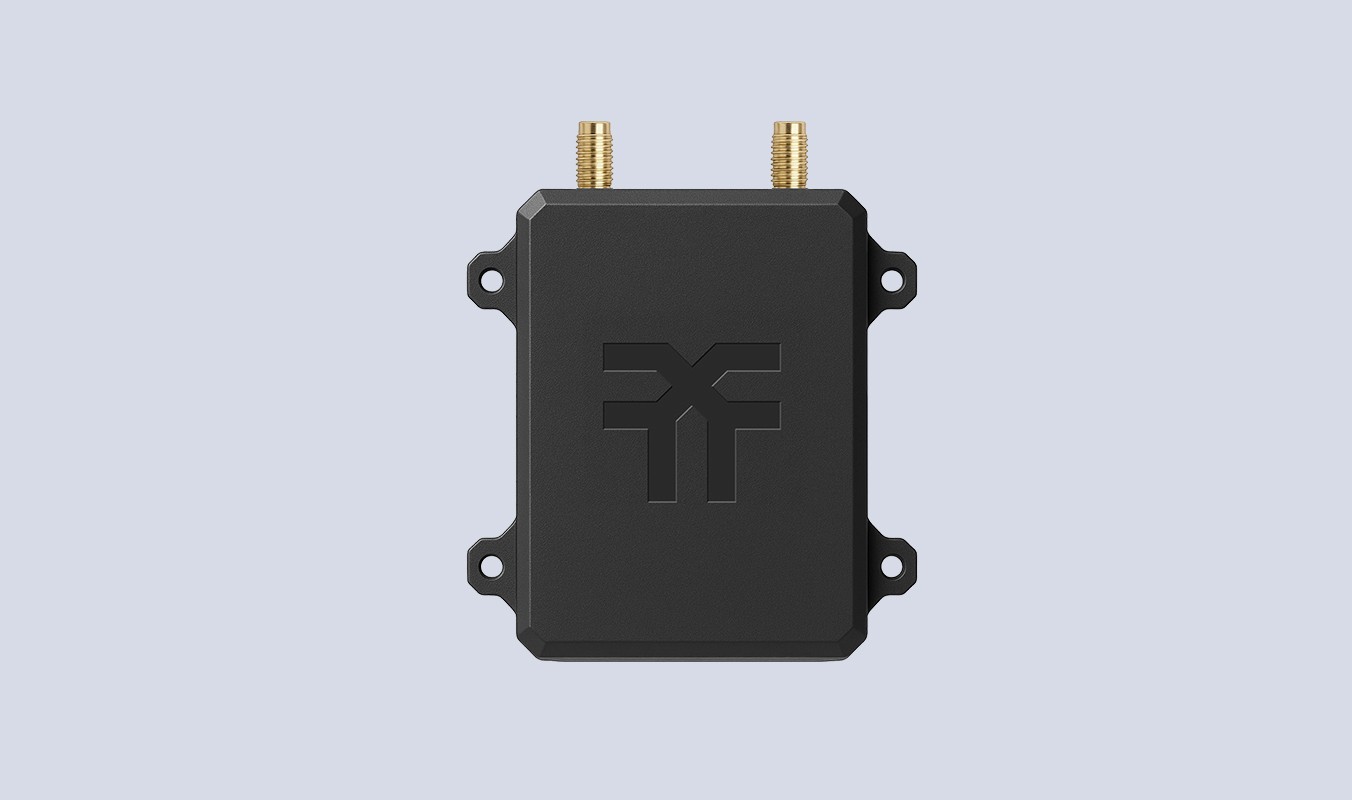

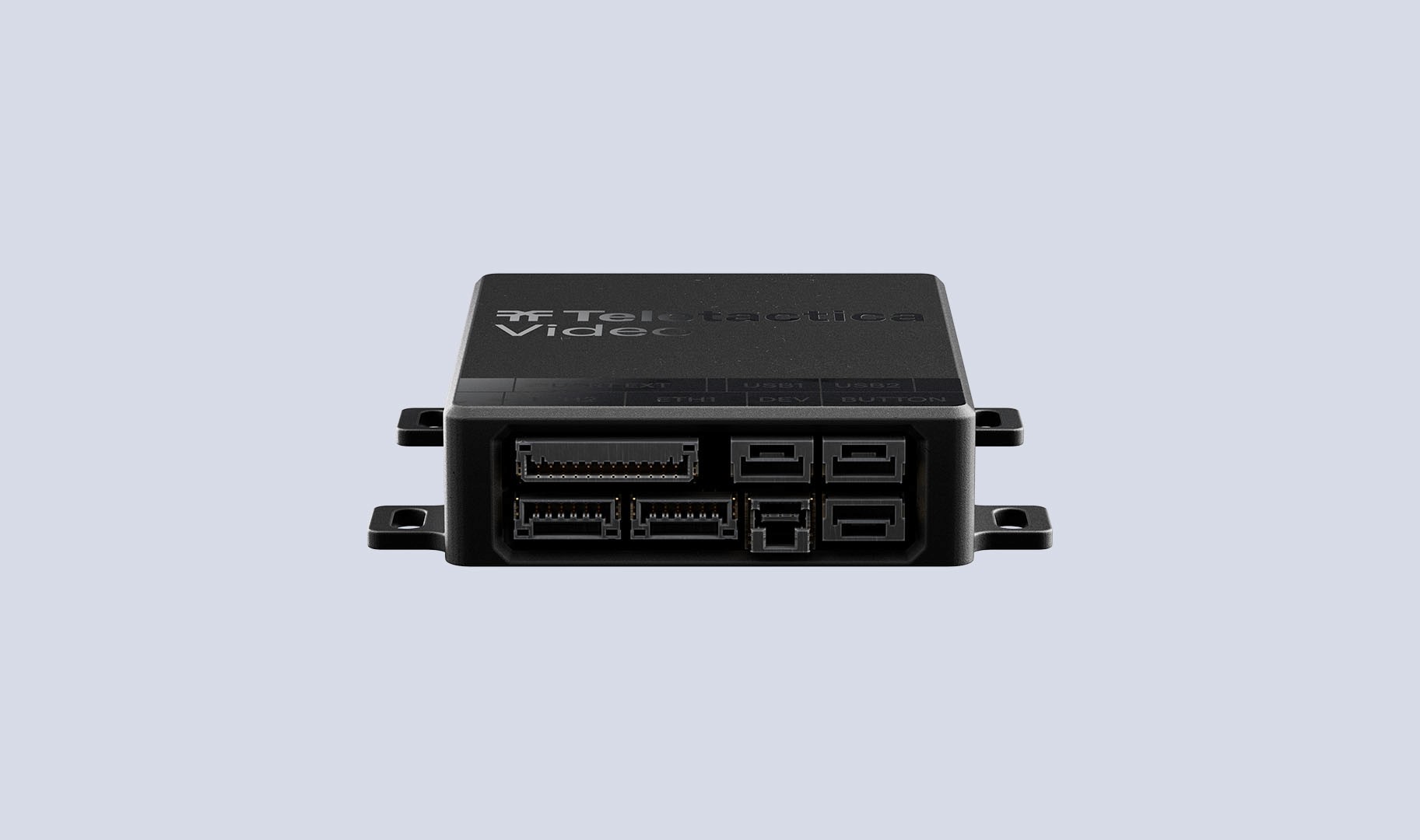

V2 Video
/ One-way communication (from air to ground)
/ Params are adjusted through the telemetry modem
/ Channel width up to 26 Mbit/s
/ Possibility to dynamically change the power (with an additional external amplifier)
General info
Waveform: MIMO 2X2 OFDM
Encryption: Yes
Data Rate: 26 Mbps (Adaptive)
Total Output Power: 1-20dBm
General info
Waveform: MIMO 2X2 OFDM
Encryption: Yes
Data Rate: up to 26 Mbps (Adaptive)
Total Output Power: 1-20dBm
Video protocol: RTP
Latency: 20ms Average
Sensitivity: -87 dBm
Operation Frequency: E band (NATO)
Video protocol: RTP
Latency: 20ms Average
Sensitivity: -87 dBm
Operation Frequency: E band (NATO)
Technical details
Ambient Temp.: -20° to +65° C
IP Rating: IP32
Mounting: 4-Hole Mounting Pattern
Weight: 80g
Technical details
Ambient Temp.: -20° to +65° C
IP Rating: IP32
Mounting: 4-Hole Mounting Pattern
Weight: 80g
Power
Input Voltage: 12-26 VDC
Power Consumption: 1 - 2W
Power
Input Voltage: 12-26 VDC
Power Consumption: 1 - 2W
Interfaces
Management Interface: WEB Interface
General info
Functional purpose: Broadband signal amplification
Operating frequency: 2200MHz-3000MHz
Input signal power: 20 dBm max
Output power in linear mode: 40 dBm (10W)
Output signal power in nonlinear mode: up to 43 dBm (20W)
Supply voltage: 16V-26V

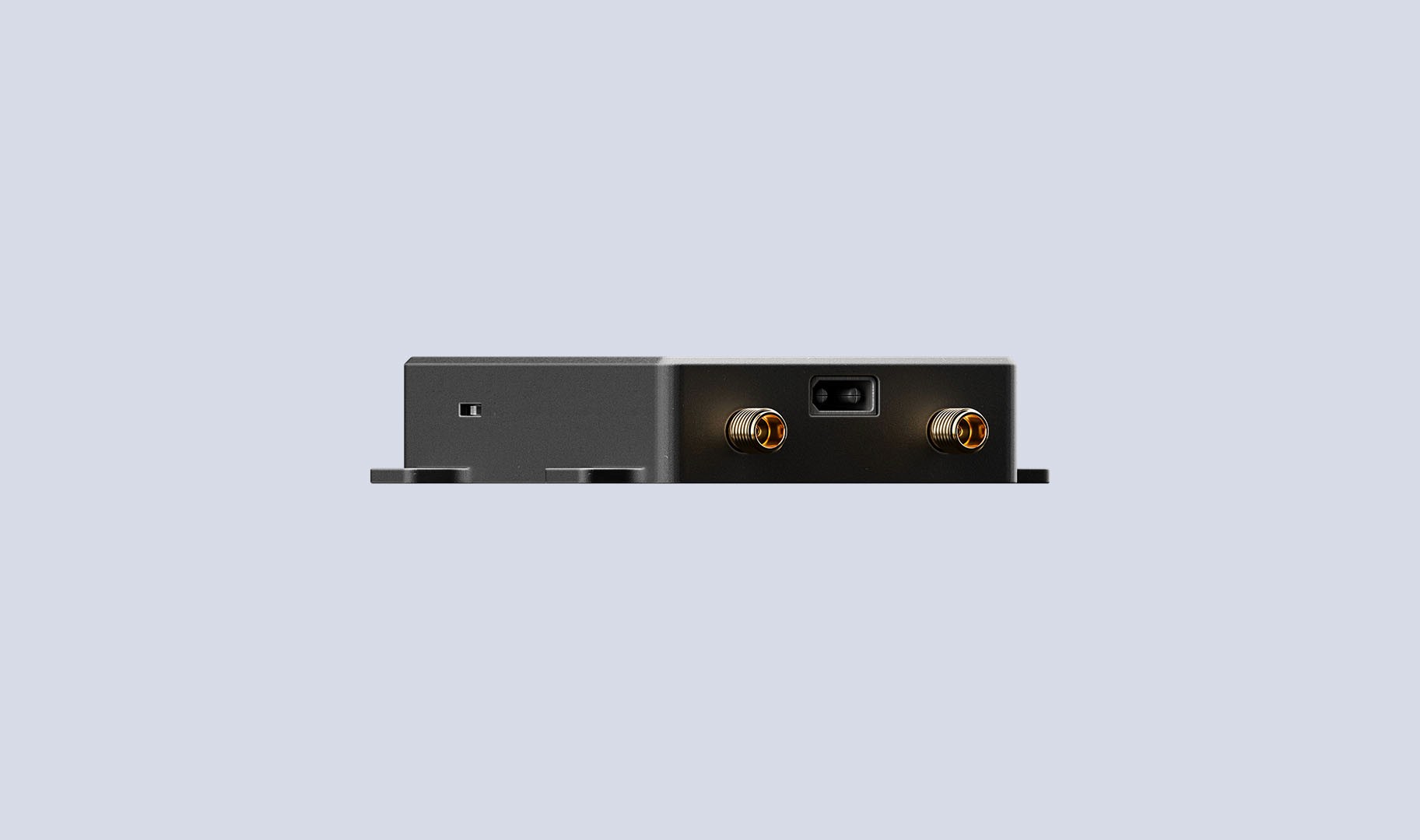

Power amplifier
General info
Functional purpose: Broadband signal amplification
Operating frequency: 2200MHz-3000MHz
Input signal power: 20 dBm max
Output power in linear mode: 40 dBm (10W)
Output signal power in nonlinear mode: up to 43 dBm (20W)
Supply voltage: 16V-26V
Contact us
General info
Waveform: MIMO 2X2 OFDM
Encryption: Yes
Data Rate: 26 Mbps (Adaptive)
Total Output Power: 1-20dBm
Video protocol: RTP
Latency: 20ms Average
Sensitivity: -87 dBm
Operation Frequency: E band (NATO)

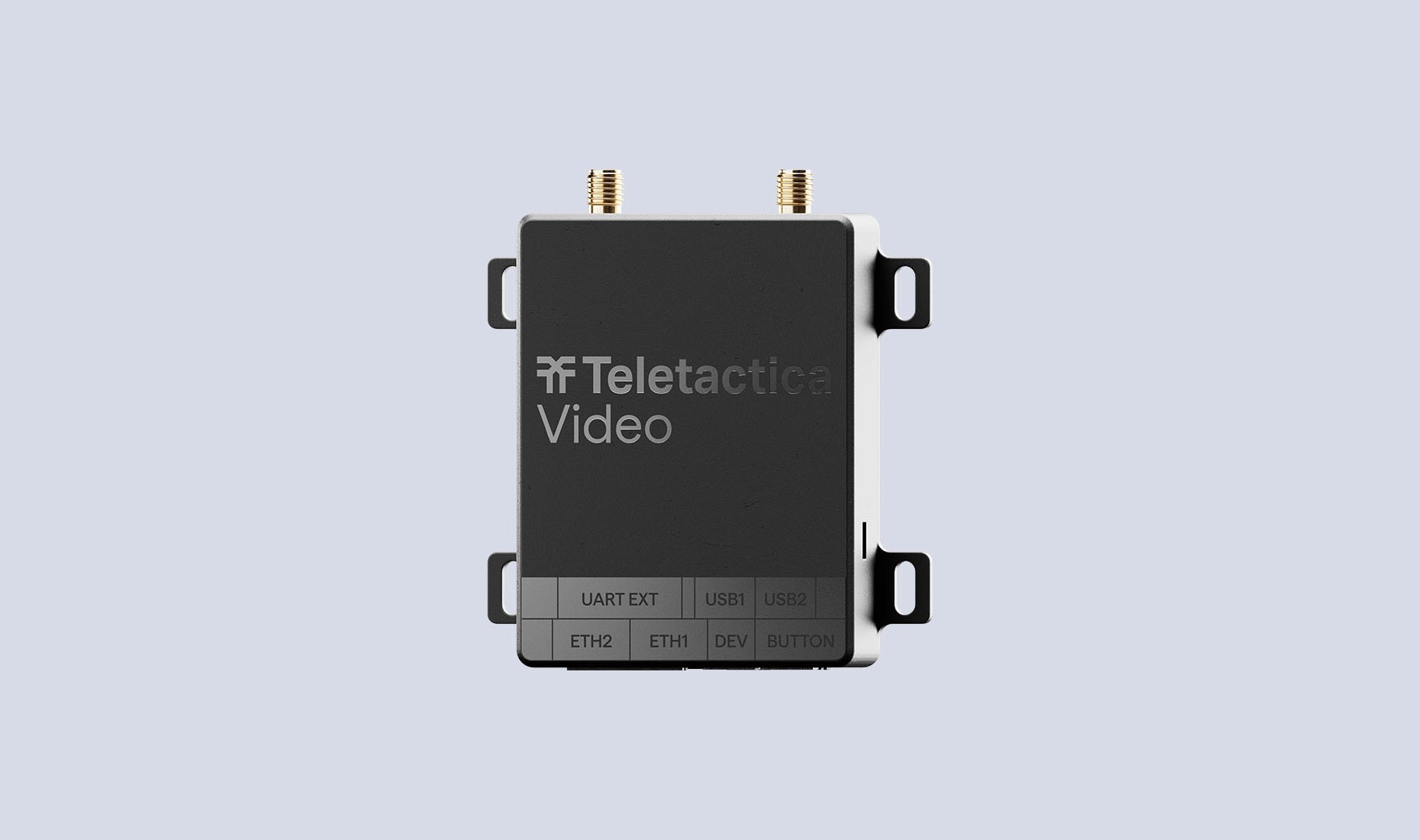

V2 Video modem
/One-way communication (from air to ground)
/Params are adjusted through the telemetry modem
/Channel width up to 26 Mbit/s
/Possibility to dynamically change the power (with an additional external amplifier)
Technical details
Ambient Temp.: -20° to +65° C
IP Rating: IP32
Mounting: 4-Hole Mounting Pattern
Weight: 80g
Power
Input Voltage: 12-26 VDC
Power Consumption: 1 - 2W
Interfaces
Management Interface: WEB Interface
Power amplifier
General info
Functional purpose: Broadband signal amplification
Operating frequency: 2200MHz-3000MHz
Input signal power: 20 dBm max
Output power in linear mode: 40 dBm (10W)
Output signal power in nonlinear mode: up to 43 dBm (20W)
Supply voltage: 16V-26V
Contact us
