A1 Antenna
The set includes a holder and two antennas operating within a wide frequency range of 750-6000 MHz. The primary purpose is to serve as an additional antenna kit for drones manufactured by Autel EVO Max 4T Protect+ or other UAVs operating within a wide radio frequency range.

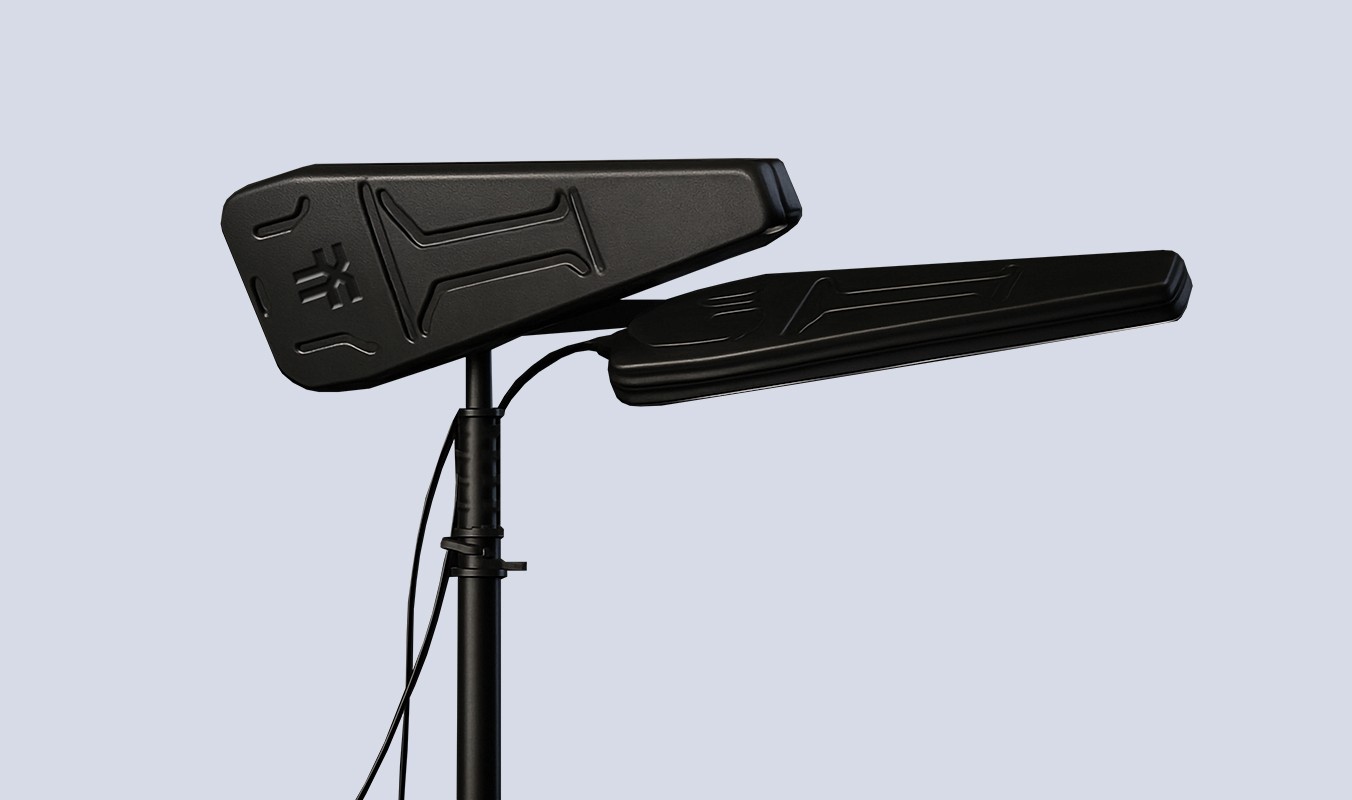

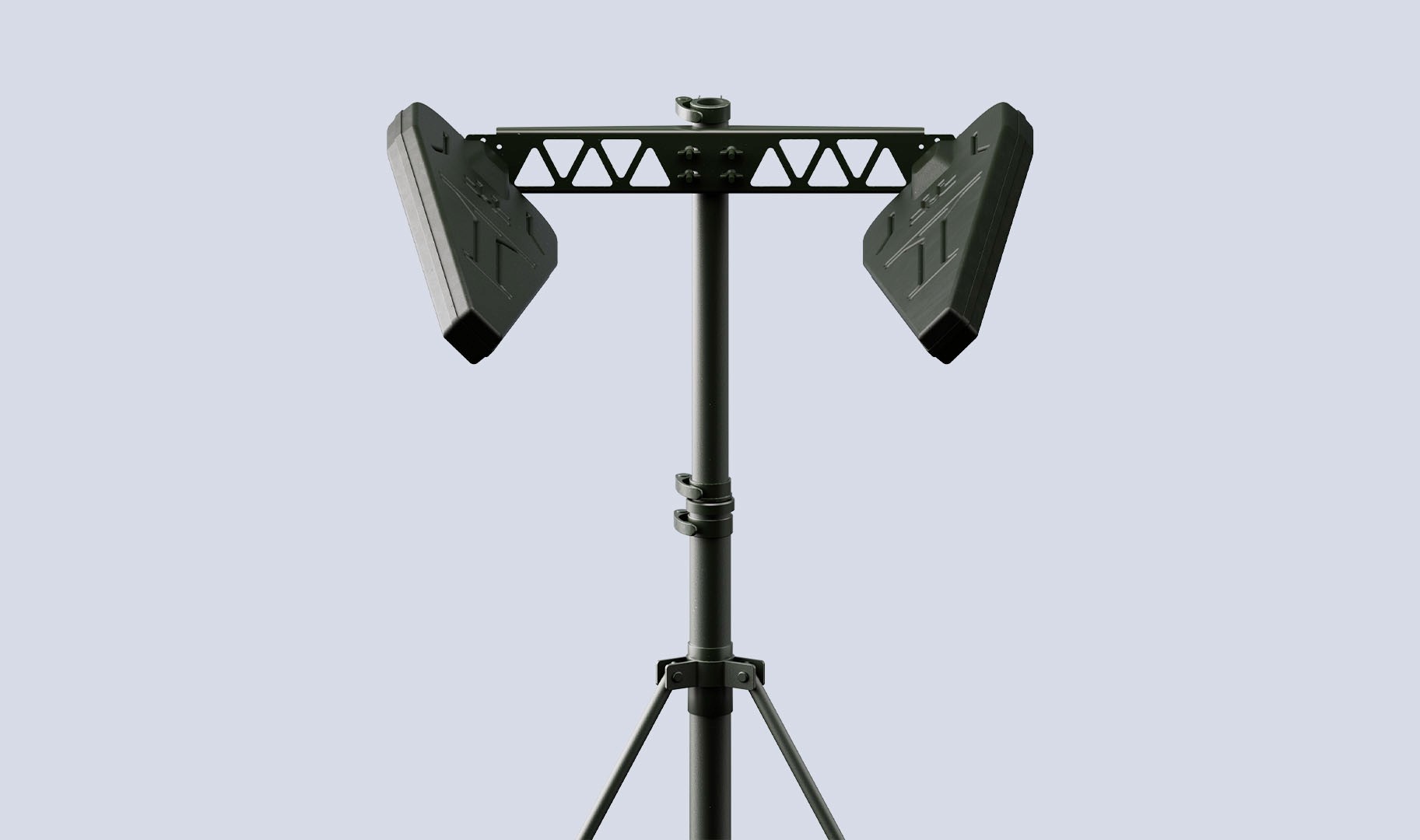

The antennas come with a mount for installation on a tripod. They can be positioned either vertically or at a 45° angle relative to the ground (V-shape configuration).
The performance stability of the antennas directly depends on the quality of the cables and connectors used with them. For this reason, we recommend purchasing our selected cable (RFA-1/2”-50 Coaxial Cable (Feeder) by TM Draka) and connectors.
General info
Operating frequency range for data transmission and reception (VSWR not more than 2 at 50 Ohms) — 750-6000 MHz
Antenna gain:
at 750 MHz: ≥ 11 dBi
at 3500 MHz: ≥11.5 dBi
at 6000 MHz: ≥ 9 dBi
Details |
A1 Antenna
The set includes a holder and two antennas operating within a wide frequency range of 750-6000 MHz. The primary purpose is to serve as an additional antenna kit for drones manufactured by Autel EVO Max 4T Protect+ or other UAVs operating within a wide radio frequency range.
The antennas come with a mount for installation on a tripod. They can be positioned either vertically or at a 45° angle relative to the ground (V-shape configuration).
The performance stability of the antennas directly depends on the quality of the cables and connectors used with them. For this reason, we recommend purchasing our selected cable (RFA-1/2”-50 Coaxial Cable (Feeder) by TM Draka) and connectors.
General info
Operating frequency range for data transmission and reception (VSWR not more than 2 at 50 Ohms) — 750-6000 MHz
Antenna gain:
at 750 MHz: ≥ 11 dBi
at 3500 MHz: ≥ 11.5 dBi
at 6000 MHz: ≥ 9 dBi
Details
Maximum input power: 100 W
Beamwidth in vertical plane: 65-78°
Protection class: IP64
Connector (on antenna): N-type connector, Female
General info
Operating frequency range for data transmission and reception (VSWR not more than 2 at 50 Ohms) — 750-6000 MHz
Antenna gain:
at 750 MHz: >11 dBi
at 3500 MHz: >11.5 dBi
at 6000 MHz: >11.5 dBi
Details |

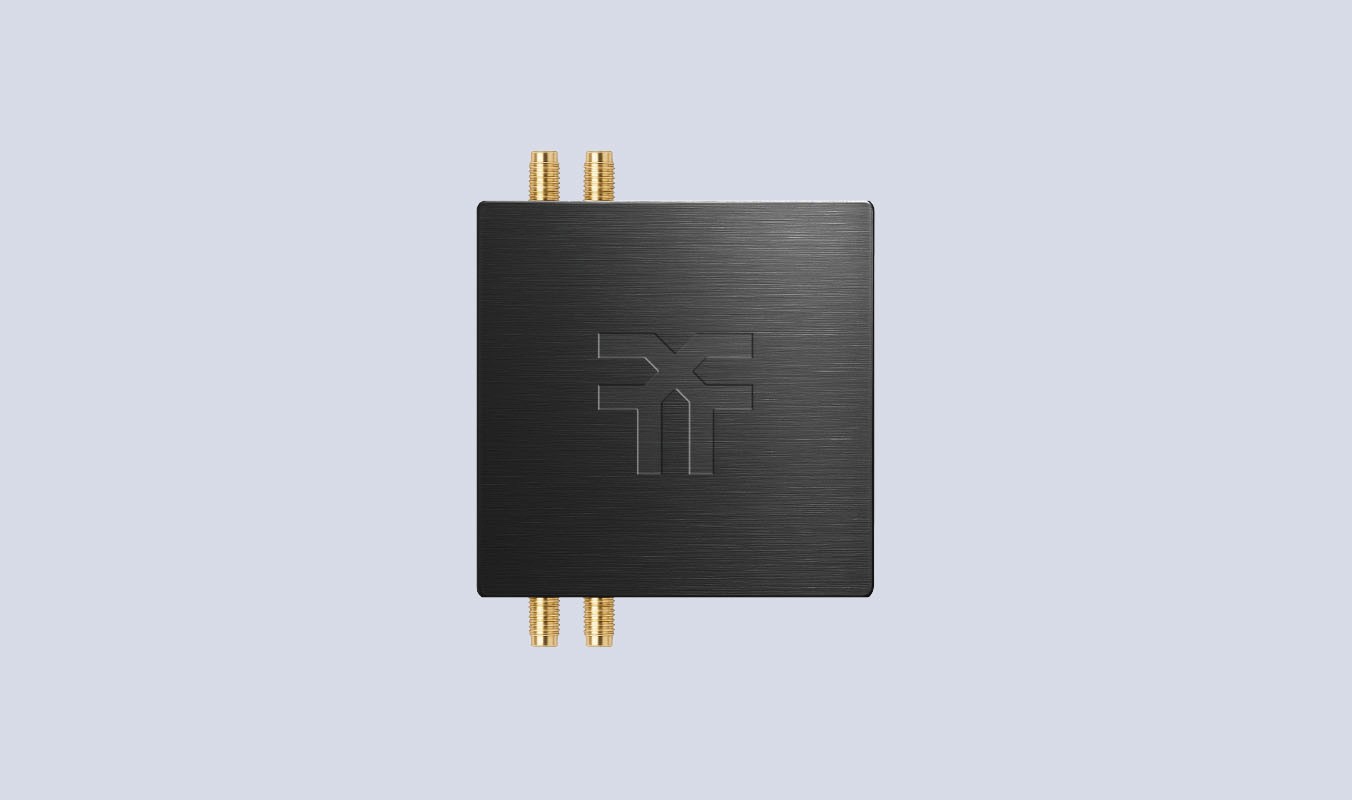

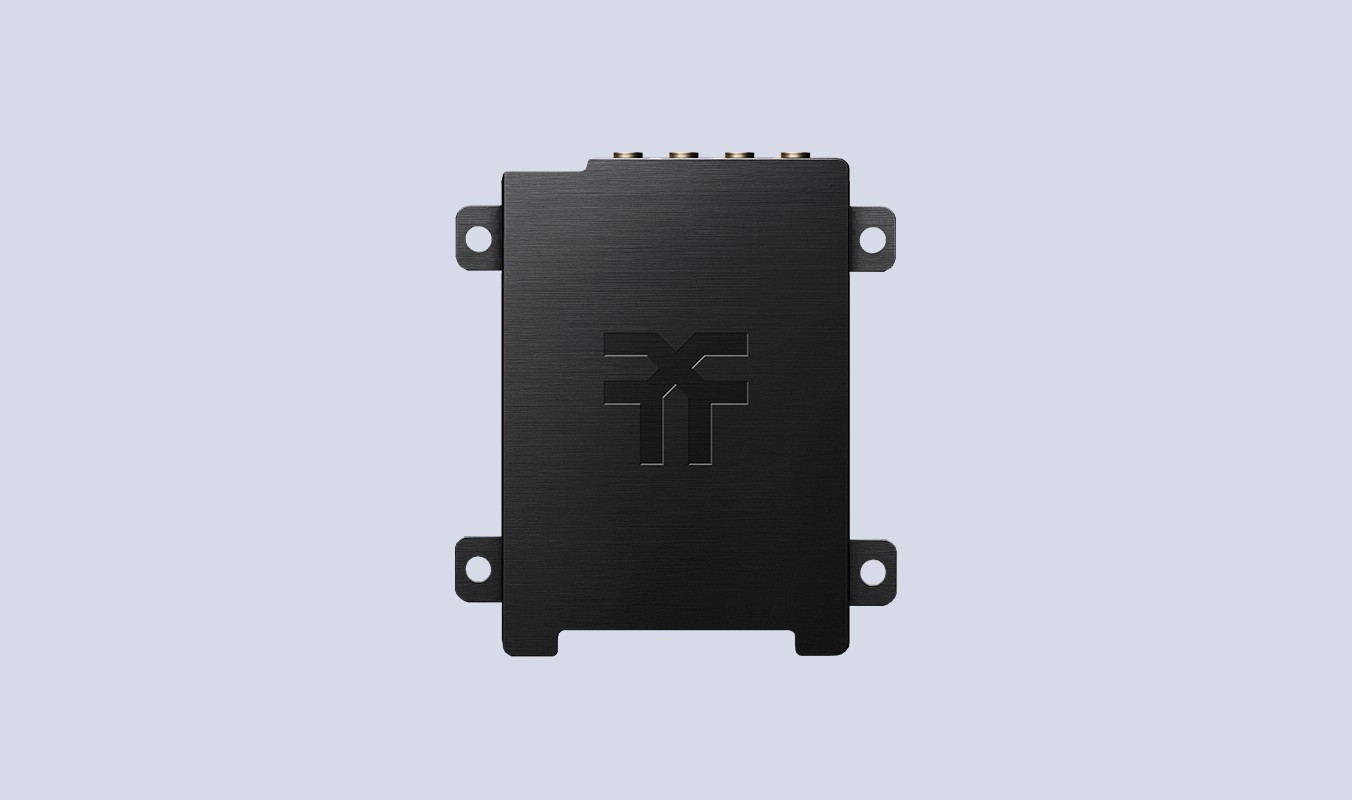

Receiving and transmitting amplifier
Broadband Power Amplifier with Cable Tuning. Designed for wideband data links, such as those used on Autel 4T drones, and perfectly matched with our A1 antennas. A built-in cable tuner ensures stable performance with RF cables over 20 meters, making it ideal for flexible installations with minimal signal loss.
Dual-Channel Configuration:
Channel 1: TX with integrated Power Amplifier (PA) and RX with Low Noise Amplifier (LNA)
| ||||
Receiving and transmitting amplifier
Broadband Power Amplifier with Cable Tuning. Designed for wideband data links, such as those used on Autel 4T drones, and perfectly matched with our A1 antennas. A built-in cable tuner ensures stable performance with RF cables over 20 meters, making it ideal for flexible installations with minimal signal loss.
Dual-Channel Configuration:
Channel 1: TX with integrated Power Amplifier (PA) and RX with Low Noise Amplifier (LNA)
| ||||
Contact us
A1 Antenna
The set includes a holder and two antennas operating within a wide frequency range of 750-6000 MHz. The primary purpose is to serve as an additional antenna kit for drones manufactured by Autel EVO Max 4T Protect+ or other UAVs operating within a wide radio frequency range.
The antennas come with a mount for installation on a tripod. They can be positioned either vertically or at a 45° angle relative to the ground (V-shape configuration).
The performance stability of the antennas directly depends on the quality of the cables and connectors used with them. For this reason, we recommend purchasing our selected cable (RFA-1/2”-50 Coaxial Cable (Feeder) by TM Draka) and connectors.
General info
Operating frequency range for data transmission and reception (VSWR not more than 2 at 50 Ohms) — 750-6000 MHz
Antenna gain:
at 750 MHz: ≥ 11 dBi
at 3500 MHz: ≥ 11.5 dBi
at 6000 MHz: ≥ 9 dBi
Details
Maximum input power: 100 W
Beamwidth in vertical plane: 65-78°
Protection class: IP64
Connector (on antenna): N-type connector, Female
Receiving and transmitting amplifier
Broadband Power Amplifier with Cable Tuning. Designed for wideband data links, such as those used on Autel 4T drones, and perfectly matched with our A1 antennas. A built-in cable tuner ensures stable performance with RF cables over 20 meters, making it ideal for flexible installations with minimal signal loss.
Dual-Channel Configuration:
| ||||||
Contact us
