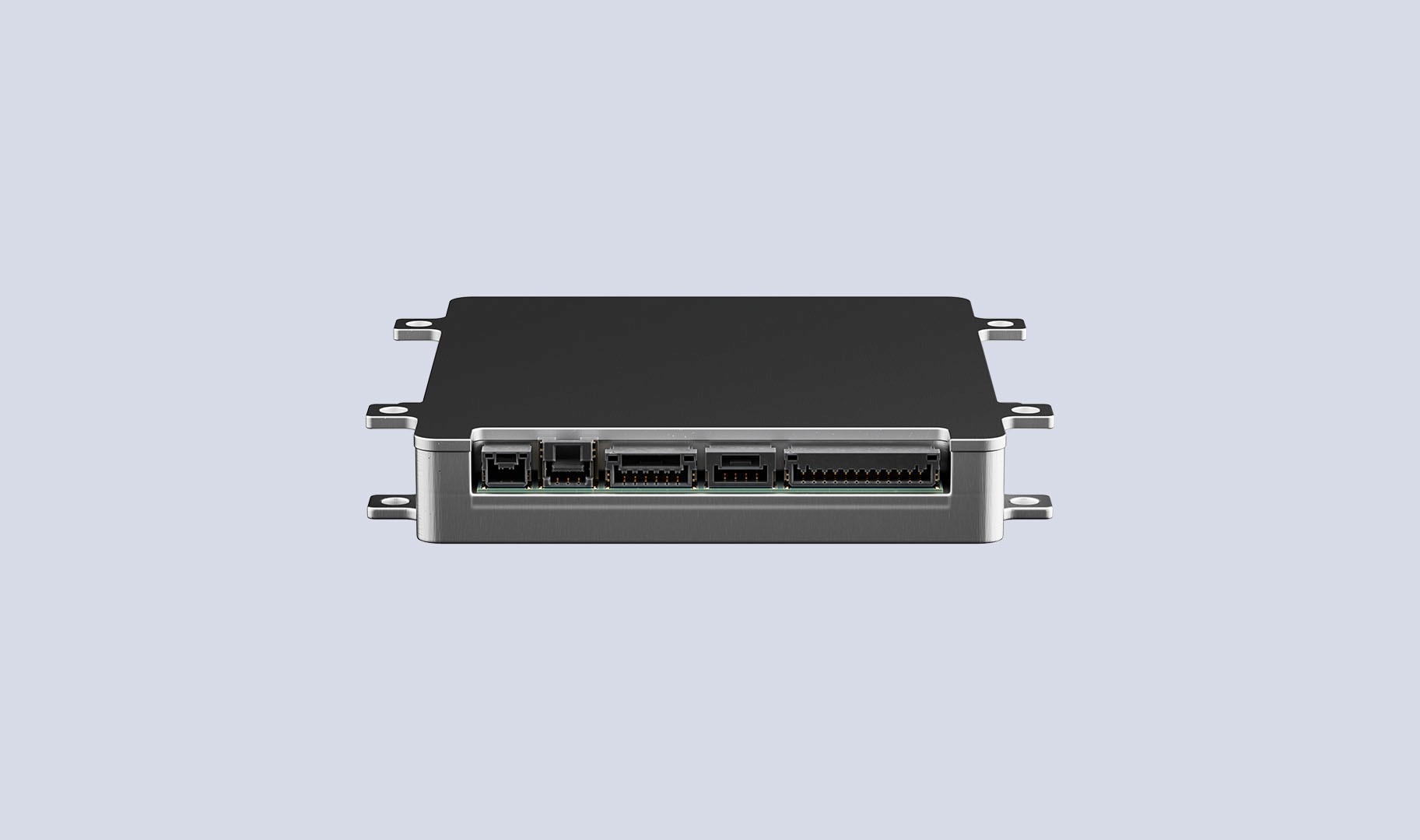

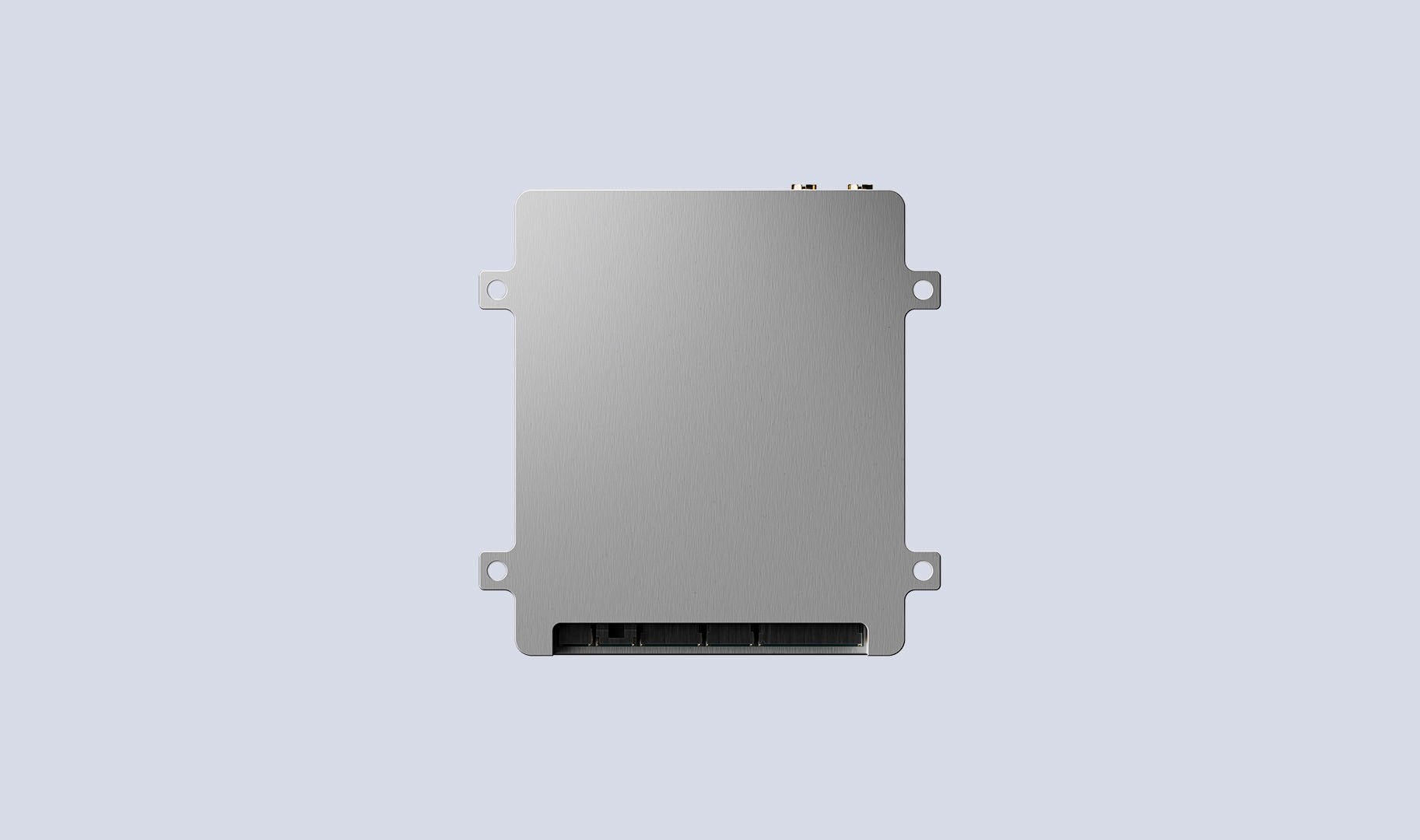

T2 Telemetry modem
/ FHSS diapason of the downlink channel is configured in the plugin
/ Uplink channel frequencies are selected adaptively in the entire operating range
/ Up to 4 antennas could be used
/ Possibility to transfer telemetry and RC
General info
Waveform: LoRa, GFSK
Encryption: Yes
Data Rate: 10+ Kbps (Adaptive)
Antenna diversity support: Yes
Total Output Power: 25mw - 4W Variable
General info
Waveform: LoRa, GFSK
Encryption: Yes
Data Rate: 10+ Kbps (Adaptive)
Antenna diversity support: Yes
Total Output Power: 25mw - 4W Variable
C.2 protocol: Mavlink2, SBUS
Latency: 60ms Average
Sensitivity: -115 dBm
Operation Frequency: wideband Sub-GHz
C.2 protocol: Mavlink2, SBUS
Latency: 60ms Average
Sensitivity: -115 dBm
Operation Frequency: wideband Sub-GHz
Technical details
Ambient Temp.: -20° to +65° C
IP Rating: IP32
Mounting: 4-Hole Mounting Pattern
Weight: 110g
Technical details
Ambient Temp.: -20° to +65° C
IP Rating: IP32
Mounting: 4-Hole Mounting Pattern
Weight: 110g
Power
Input Voltage: 12-26 VDC
Power Consumption: 2 - 10W
Power
Input Voltage: 12-26 VDC
Power Consumption: 2 - 10W
Interfaces
Management Interface: Plugin
Contact us
General info
Waveform: LoRa, GFSK
Encryption: Yes
Data Rate: 10+ Kbps (Adaptive)
Antenna diversity support: Yes
Total Output Power: 25mw - 4W Variable
C.2 protocol: Mavlink2, SBUS
Latency: 60ms Average
Sensitivity: -115 dBm
Operation Frequency: wideband Sub-GHz
T2 Video modem
/ FHSS diapason of the downlink channel is configured in the plugin
/ Uplink channel frequencies are selected adaptively in the entire operating range
/ Up to 4 antennas could be used
/ Possibility to transfer telemetry and RC
Technical details
Ambient Temp.: -20° to +65° C
IP Rating: IP32
Mounting: 4-Hole Mounting Pattern
Weight: 110g
Power
Input Voltage: 12-26 VDC
Power Consumption:
2-10W
Interfaces
Management Interface: Plugin
Contact us
